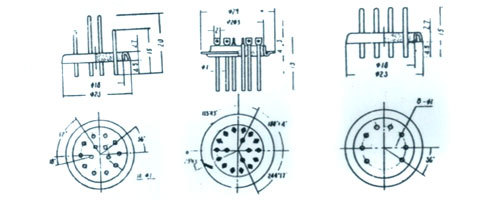

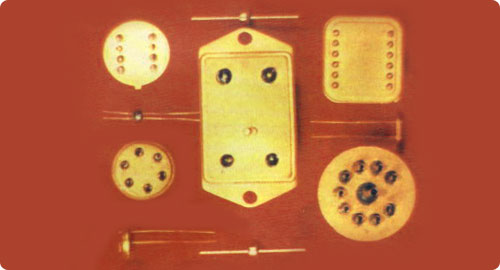

| 继电器用密封绝缘子 Multi-Terminal
Insulator used for Relay |
 |
|
耐酸绝缘子
AcidResisfant Insulator
 |

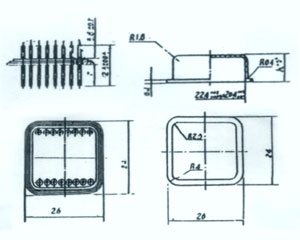

锁相环壳座（16引线）
Phase-Locked Loop Retainer(16 leads)
 |
规格
SPECIFICATION |
D±0.1 |
D±0.05 |
D±0.05 |
H±0.1 |
| JS-Y5.3 |
8 |
5.3 |
4.3 |
6.0 |
| JS-Y7.2 |
10 |
7.2 |
5.3 |
6.5 |
| JS-Y9.2 |
12 |
9.2 |
7.2 |
7.0 |
|

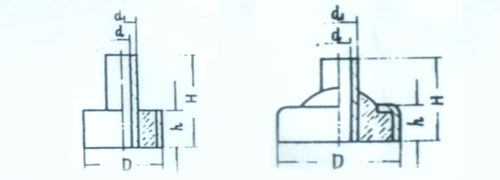

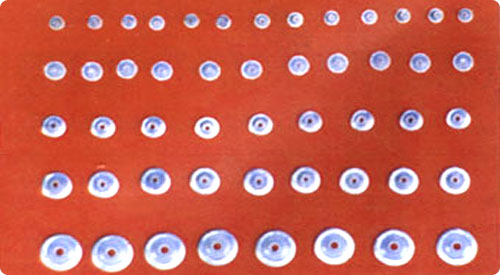

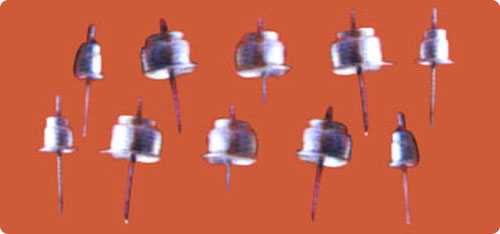

| 电容器用密封绝缘子 hermetic
Insulator Used For Capacitor |
 |
型号
MODEL |
D±0.1 |
d±0.1 |
 |
h±0.1 |
d |
圆型
PATTERN |
| p—2.0 |
2.0 |
0.3 |
3.0 |
2.0 |
0.6 |
1 |
| p—2.5 |
2.5 |
0.6 |
3.0 |
1.2 |
1.0 |
1 |
| p—3.4 |
3.4 |
1.0 |
3.0 |
1.5 |
1.0 |
1 |
| p—4.3 |
4.3 |
1.0 |
3.5 |
1.5 |
1.5 |
2 |
| p—5.3 |
5.3 |
1.0 |
3.5 |
1.5 |
1.5 |
2 |
| p—6.3 |
6.3 |
1.0 |
3.5 |
1.5 |
1.5 |
2 |
| p—7.2 |
7.2 |
1.5 |
4.0 |
1.5 |
2.0 |
2 |
|

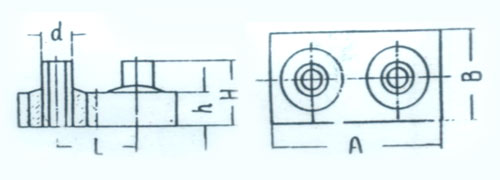

| 电器用密封绝缘子 Hermetic
lnsulator used for Electronic Apparatues |
 |
型号
MODEL |
A |
B |
L |
H |
h |
d |
工作电压
VOLTAGE |
2G1
|
 |
 |
7.3±0.1 |
4.0 |
1.5 |
1.5 |
400 |
| 2G2 |
9.9±0.05 |
 |
5.0±0.08 |
3.3 |
1.5 |
1.4 |
250 |
| 2G3 |
19.2±0.15 |
9.4±0.15 |
10±0.1 |
4 |
1.5 |
2 |
400 |
|
 |
|
|
